Due to mast sizes shipping to for UK customers is done by ourselves and on a monthly basis.

£650.00
ex. VAT

NEW!

Special offer! 3 section aluminium masts are made from structural grade box section, with a 76mm outer, 64mm and 50mm inner sections. Ground mounted or wall mounted versions come with 2 x 1200lb winches, 80mm box  steel wall bracket or ground post.

This is a very managable mast that's suitable for VHF/UHF arrays or small HF antennas.

The 3 sections has the advantage of a lower minimum and a taller extended height due to the extra section.



Display more >>


NEW!

£650.00 ex. VAT

Special offer! 3 section aluminium masts are made from structural grade box section, with a 76mm outer, 64mm and 50mm inner sections. Ground mounted or wall mounted versions come with 2 x 1200lb winches, 80mm box  steel wall bracket or ground post.

This is a very managable mast that's suitable for VHF/UHF arrays or small HF antennas.

The 3 sections has the advantage of a lower minimum and a taller extended height due to the extra section.




Display more >>


size
£475.00
ex. VAT

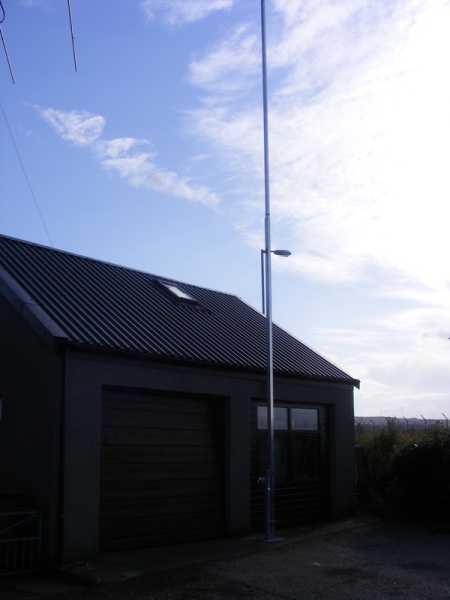

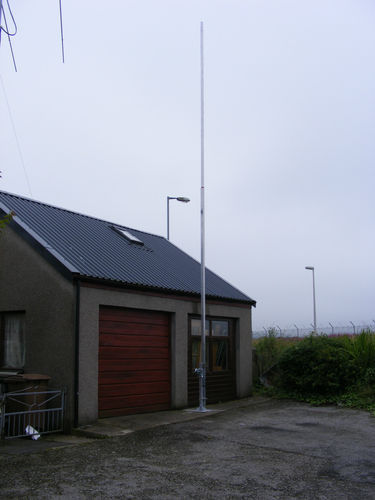

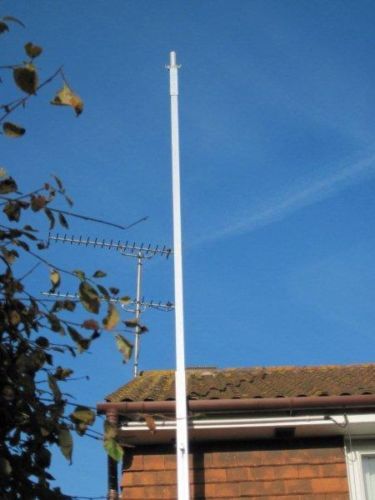

8M Tilting alumnium mast, freestanding or wall mount options

To try and satisfy planners we are now manufacturing 8M lasts, the bare mast is 3m (10ft), this extends to 8M (over 26ft) with the head adaptor fitted and fully extended, making it ideal for weekend working, antenna testing and satisfying neighbours and planners alike.



Planning regulations  for most areas state a freestanding structure of no more than 3m (10ft)for mast fitted to your house they must not extend more then 1m above the chimney or roof apex and more than 1m out from the wall or roof line. This may be different in your area.



With the option of freestanding ground mounted, post mounted or wall mounted manual tilt, we have a mast to suit most locations.



weighing in at less than 20kg this mast is very robust yet easily fitted, tilted etc and is ideal for vhf/uhf and small hf beams.



Heavy duty alumnium sections

Outer aluminium box section is 3m of 2 1/2 inch (64mm) 3.25mm wall thickness

Inner aluminium box section is 3m of 2 inch (51mm) 3.25mm wall thickness.

Detatchable Head adapter 3m of 2 inch (50mm)  8swg round tube



lowest height 3m(10ft), with adaptor fitted 6m (20ft) and fully extended 8m (26ft+)



Manual tilt wall mounted version please email stand off required ie distance from wall to back end of mast to clear any roof overhang such as guttering window sills etc.

Ground mounted manual tilt:   This model comes complete with a 1.5m post (1m above ground) the post requires cementing into the ground.  Ground sleeves can also be supplied, making removal or relocation of the mast easier. Many customers have 2 or 3 sleeves in different locations in order to move the mast when required.

Post mounted version: This model comes with a 400 x 400mm plate fitted to the base of the post

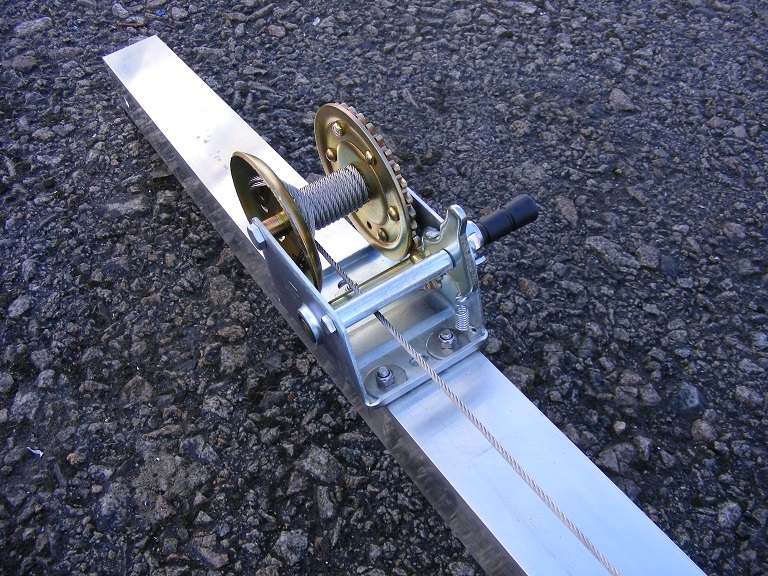

 All models come complete with heavy duty 600lb single winch and stainless steel cable. .

Display more >>


8M Tilting alumnium mast, freestanding or wall mount options

£475.00 ex. VAT

To try and satisfy planners we are now manufacturing 8M lasts, the bare mast is 3m (10ft), this extends to 8M (over 26ft) with the head adaptor fitted and fully extended, making it ideal for weekend working, antenna testing and satisfying neighbours and planners alike.



Planning regulations  for most areas state a freestanding structure of no more than 3m (10ft)for mast fitted to your house they must not extend more then 1m above the chimney or roof apex and more than 1m out from the wall or roof line. This may be different in your area.



With the option of freestanding ground mounted, post mounted or wall mounted manual tilt, we have a mast to suit most locations.



weighing in at less than 20kg this mast is very robust yet easily fitted, tilted etc and is ideal for vhf/uhf and small hf beams.



Heavy duty alumnium sections

Outer aluminium box section is 3m of 2 1/2 inch (64mm) 3.25mm wall thickness

Inner aluminium box section is 3m of 2 inch (51mm) 3.25mm wall thickness.

Detatchable Head adapter 3m of 2 inch (50mm)  8swg round tube



lowest height 3m(10ft), with adaptor fitted 6m (20ft) and fully extended 8m (26ft+)



Manual tilt wall mounted version please email stand off required ie distance from wall to back end of mast to clear any roof overhang such as guttering window sills etc.

Ground mounted manual tilt:   This model comes complete with a 1.5m post (1m above ground) the post requires cementing into the ground.  Ground sleeves can also be supplied, making removal or relocation of the mast easier. Many customers have 2 or 3 sleeves in different locations in order to move the mast when required.

Post mounted version: This model comes with a 400 x 400mm plate fitted to the base of the post

 All models come complete with heavy duty 600lb single winch and stainless steel cable. .


Display more >>


type
£625.00
ex. VAT

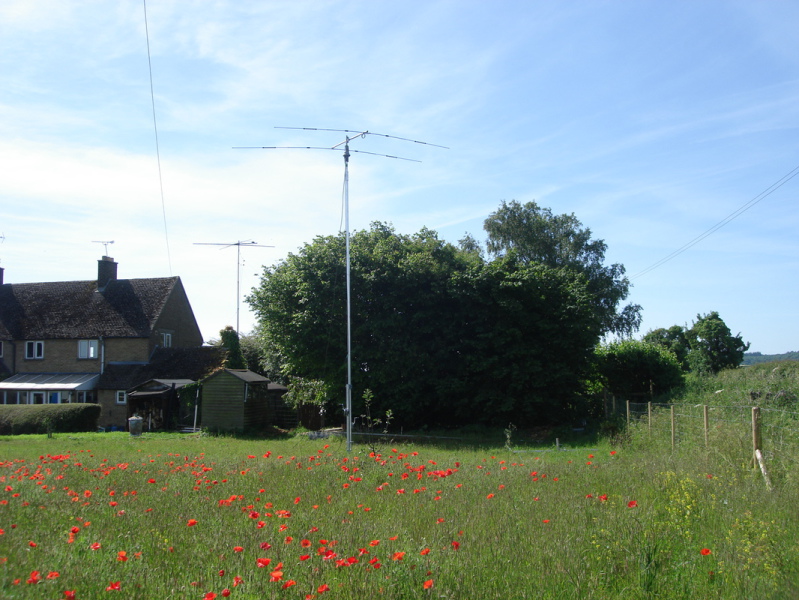

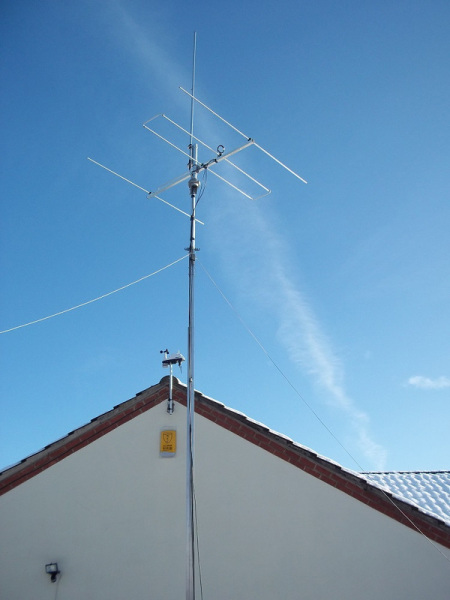

10.5 or 12M Ground Mounted (free standing) Alumnium Mast

Free standing ground mounted tilt mast, This models comes with a 2M (1.5M above ground) (60mm x 60mm) post and a 500mm sleeve to cement into the ground and the 2M post slots into it.
Ideal for a UHF, VHF, HF minibeam, wire antennas and lighting etc.

outer aluminium box section is 5 or 6M of 2 1/2 inch (64mm) 3.25mm wall thickness

Inner aluminium box section is 5 or 6M of 2 inch (51mm) 3.25mm wall thickness.



This mast is also terminated at the top with 2" round tube for directly adding your antenna or rotator.

2 x heavy duty 800lb winches, one to elevate and the other for tilt operations.



The mast is 5.2m or 6.2m when lowered and extended to 10.5 or 12M depending on model ordered.

Weighing in at 23kg or 27kg, the bare mast can be lifted and installed easily

A guy ring is provided as standard with this model and we recommend it be used.



This model requires 1m square concrete 500mm deep or suitable base

Display more >>


10.5 or 12M Ground Mounted (free standing) Alumnium Mast

£625.00 ex. VAT

Free standing ground mounted tilt mast, This models comes with a 2M (1.5M above ground) (60mm x 60mm) post and a 500mm sleeve to cement into the ground and the 2M post slots into it.
Ideal for a UHF, VHF, HF minibeam, wire antennas and lighting etc.

outer aluminium box section is 5 or 6M of 2 1/2 inch (64mm) 3.25mm wall thickness

Inner aluminium box section is 5 or 6M of 2 inch (51mm) 3.25mm wall thickness.



This mast is also terminated at the top with 2" round tube for directly adding your antenna or rotator.

2 x heavy duty 800lb winches, one to elevate and the other for tilt operations.



The mast is 5.2m or 6.2m when lowered and extended to 10.5 or 12M depending on model ordered.

Weighing in at 23kg or 27kg, the bare mast can be lifted and installed easily

A guy ring is provided as standard with this model and we recommend it be used.



This model requires 1m square concrete 500mm deep or suitable base


Display more >>


size
£625.00
ex. VAT

10.5M or 12M Post Mounted Free Standing Mast With 400mm x 400mm Steel Fixing Plate


Free standing post mounted tilt mast, This models comes with a 1.5M (60mm x 60mm) post with 400 x 400mm 6mm steel plate for attaching the post to a suitable concrete base.

Ideal for a UHF, VHF, HF minibeam, wire antennas and lighting etc.

outer aluminium box section is 5 or 6M of 2 1/2 inch (64mm) 3.25mm wall thickness

Inner aluminium box section is 5 or 6M of 2 inch (51mm) 3.25mm wall thickness.



This mast is also terminated at the top with 2" round tube for directly adding your antenna or rotator.

2 x heavy duty 800lb winches, one to elevate and the other for tilt operations.



The mast is 5.2m or 6.2m when lowered and extended to 10.5 or 12M depending on model ordered.

Weighing in at 23kg or 27kg, the bare mast can be lifted and installed easily

A guy ring is provided as standard with this model and we recommend it be used.



This model requires 1m square concrete 500mm deep or suitable base

Display more >>


10.5M or 12M Post Mounted Free Standing Mast With 400mm x 400mm Steel Fixing Plate

£625.00 ex. VAT


Free standing post mounted tilt mast, This models comes with a 1.5M (60mm x 60mm) post with 400 x 400mm 6mm steel plate for attaching the post to a suitable concrete base.

Ideal for a UHF, VHF, HF minibeam, wire antennas and lighting etc.

outer aluminium box section is 5 or 6M of 2 1/2 inch (64mm) 3.25mm wall thickness

Inner aluminium box section is 5 or 6M of 2 inch (51mm) 3.25mm wall thickness.



This mast is also terminated at the top with 2" round tube for directly adding your antenna or rotator.

2 x heavy duty 800lb winches, one to elevate and the other for tilt operations.



The mast is 5.2m or 6.2m when lowered and extended to 10.5 or 12M depending on model ordered.

Weighing in at 23kg or 27kg, the bare mast can be lifted and installed easily

A guy ring is provided as standard with this model and we recommend it be used.



This model requires 1m square concrete 500mm deep or suitable base


Display more >>


size
£625.00
ex. VAT

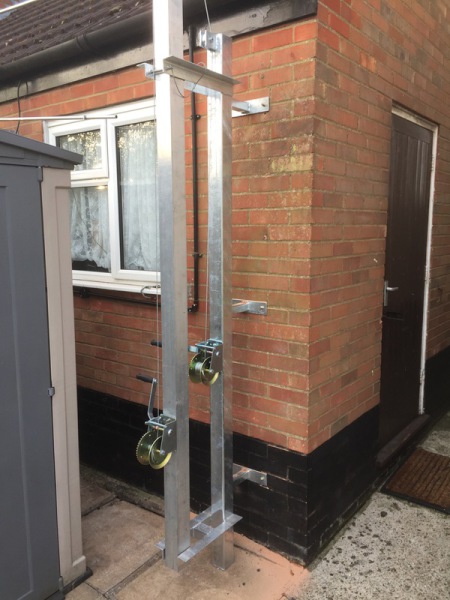

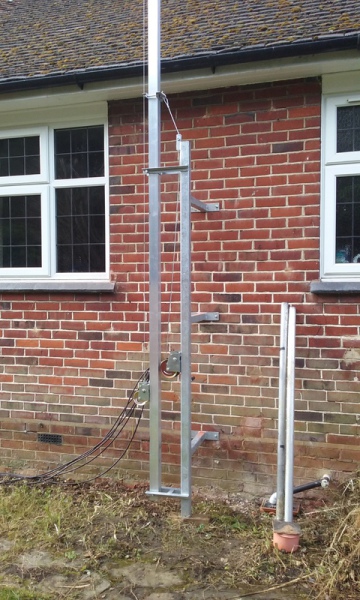

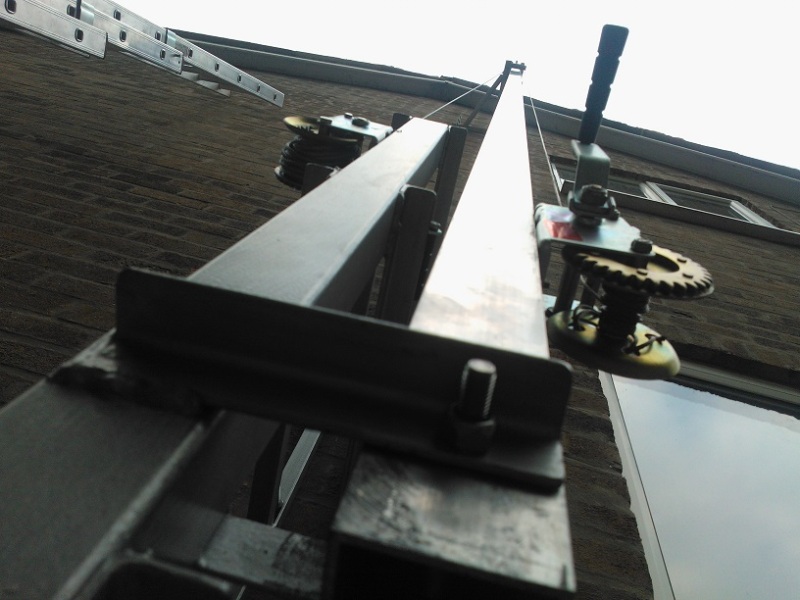

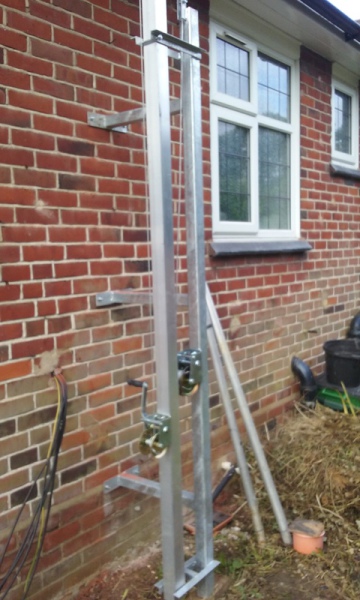

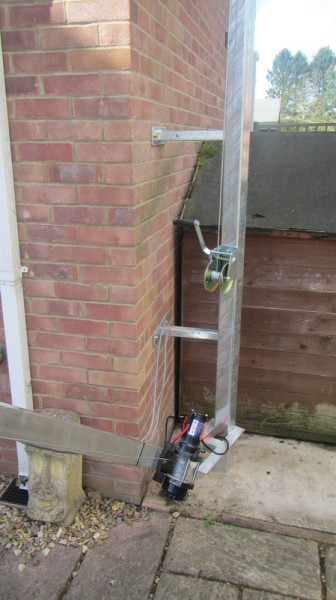

Wall Mounted 10.5M or 12M Parallel Winched Tilt (2 X Winches

ideal for a UHF, VHF, HF minibeam, wire antennas and lighting etc.



Single wall bracket @ 3m for the 10m version and 3.5m for 12m mast


outer aluminium box section is 6 or 5m of 2 1/2 inch (64mm) 3.25mm wall thickness

Inner aluminium box section is 6 or 5m of 2 inch (51mm) 3.25mm wall thickness.

Heavy duty 1200lb double winch and cables, one for elevation and the other for tilting operation.

The mast is 6.5 or 5.5M when lowered and extended to 12 or 10M (depending on model)

Weighing in at only 27 or 23kg, it can be lifted and installed easily

This model come with either 24", 18" or bespoke sized stand off brackets at no extra cost.



Please order either L/H or R/H tilt model, this is the side that the mast tilts towards as you face the fixing wall.

Display more >>


Wall Mounted 10.5M or 12M Parallel Winched Tilt (2 X Winches

£625.00 ex. VAT

ideal for a UHF, VHF, HF minibeam, wire antennas and lighting etc.



Single wall bracket @ 3m for the 10m version and 3.5m for 12m mast


outer aluminium box section is 6 or 5m of 2 1/2 inch (64mm) 3.25mm wall thickness

Inner aluminium box section is 6 or 5m of 2 inch (51mm) 3.25mm wall thickness.

Heavy duty 1200lb double winch and cables, one for elevation and the other for tilting operation.

The mast is 6.5 or 5.5M when lowered and extended to 12 or 10M (depending on model)

Weighing in at only 27 or 23kg, it can be lifted and installed easily

This model come with either 24", 18" or bespoke sized stand off brackets at no extra cost.



Please order either L/H or R/H tilt model, this is the side that the mast tilts towards as you face the fixing wall.


Display more >>


type & size
stand off distance (distance from wall to rear of mast)
£625.00
ex. VAT

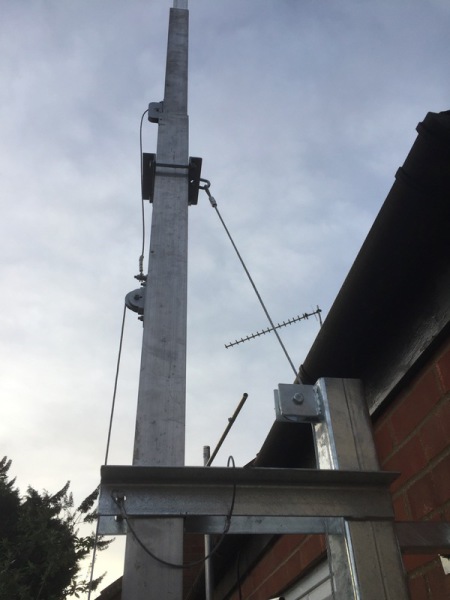

Wall Mounted 10.5M or 12M Winched Tilt (2 X Winches)

10M or 12M telescopic heavy duty aluminium mast / tower. made with heavy duty materials, it's ideal for a UHF, VHF, HF minibeam, wire antennas and lighting etc.



10M version comes with a 3m tall wall bracket and the 12M version has a 3.5m tall bracket.



 outer aluminium box section is 6 or 5m of 2 1/2 inch (64mm) 3.25mm wall thickness

Inner aluminium box section is 6 or 5m of 2 inch (51mm) 3.25mm wall thickness.

Heavy duty 800lb double winch and cables, one for elevation and the other for tilting operation.

The mast is 6.5 or 5.5M when lowered and extended to 12 or 10M (depending on model)

Weighing in at only 27 or 23kg, it can be lifted and installed easily

This model come with either 24", 18" or bespoke sized stand off brackets at no extra cost.

Display more >>


Wall Mounted 10.5M or 12M Winched Tilt (2 X Winches)

£625.00 ex. VAT

10M or 12M telescopic heavy duty aluminium mast / tower. made with heavy duty materials, it's ideal for a UHF, VHF, HF minibeam, wire antennas and lighting etc.



10M version comes with a 3m tall wall bracket and the 12M version has a 3.5m tall bracket.



 outer aluminium box section is 6 or 5m of 2 1/2 inch (64mm) 3.25mm wall thickness

Inner aluminium box section is 6 or 5m of 2 inch (51mm) 3.25mm wall thickness.

Heavy duty 800lb double winch and cables, one for elevation and the other for tilting operation.

The mast is 6.5 or 5.5M when lowered and extended to 12 or 10M (depending on model)

Weighing in at only 27 or 23kg, it can be lifted and installed easily

This model come with either 24", 18" or bespoke sized stand off brackets at no extra cost.


Display more >>


type & size
stand off distance (distance from wall to rear of mast)
