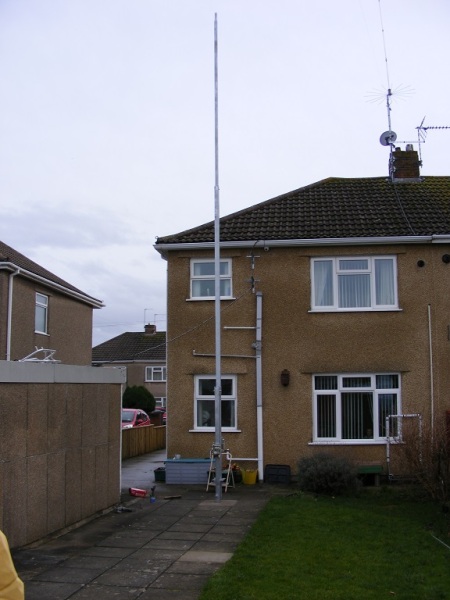

Free standing 12m 3 section 90mm galvanised steel box section mast with wireless remote winch, rotator cage, alloy stub mast, ground sleeve.

12m galvanised steel box section 90mm, 70mm, 50mm mast taper, guy lugs and coax guides fitted.

1.5m above ground post.

electric remote controlled winch

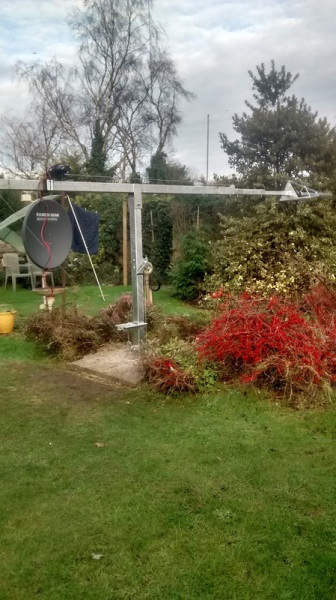

heavy duty double geared manual winch for tilt

1m tall rotator cage with SPID adaptor if required

1.5m 2" alloy stub mast

1m ground sleeve posted in advance for fitting by you before delivery.

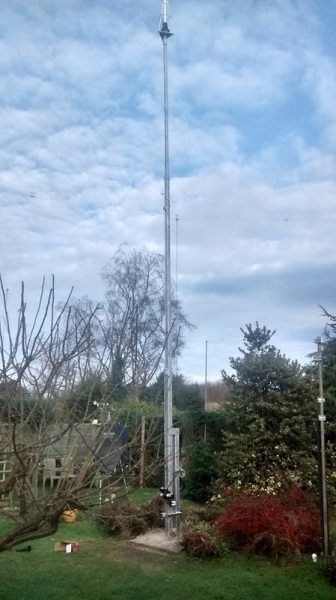

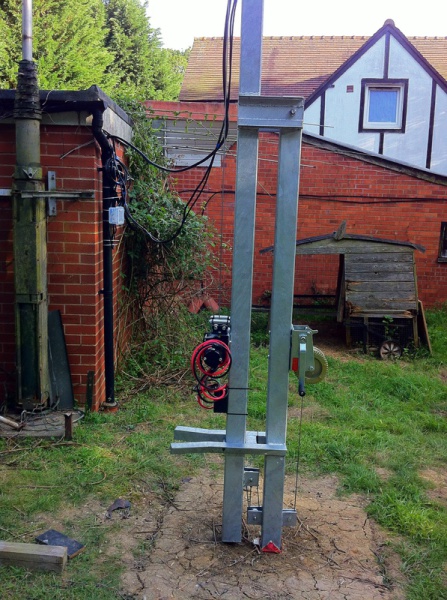

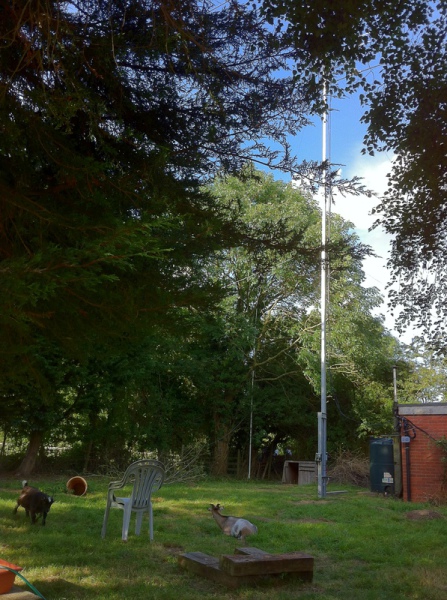

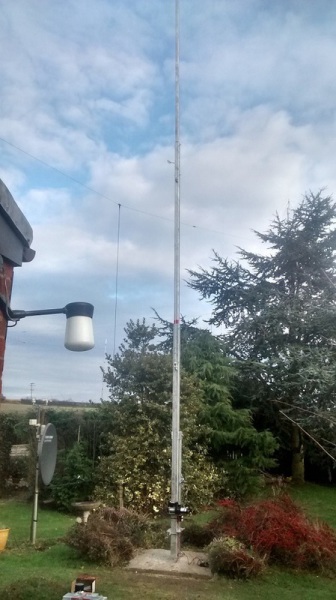

Freestanding 12M  or 15m 100mm galvanised steel mast, electric remote winch and rotator cage (fitting option in drop down box)

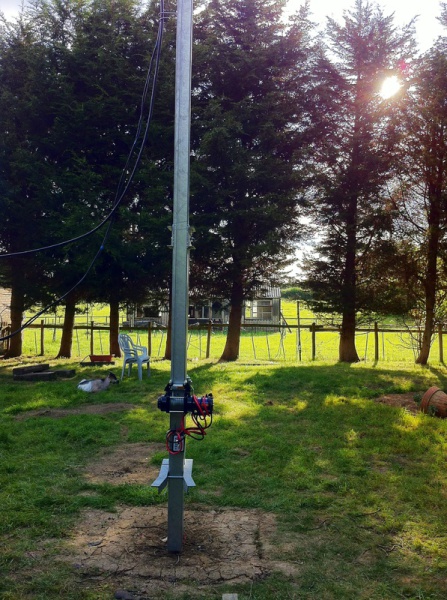

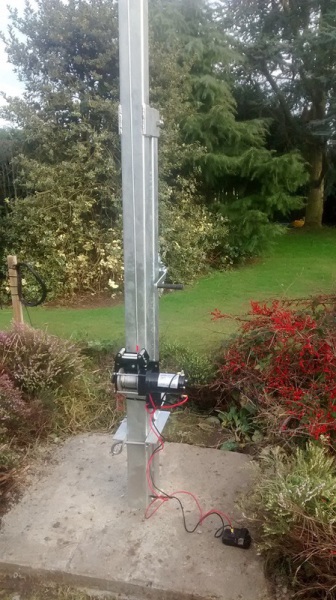

Electric wireless remote winch

HD 2500lb double geared tilt winch

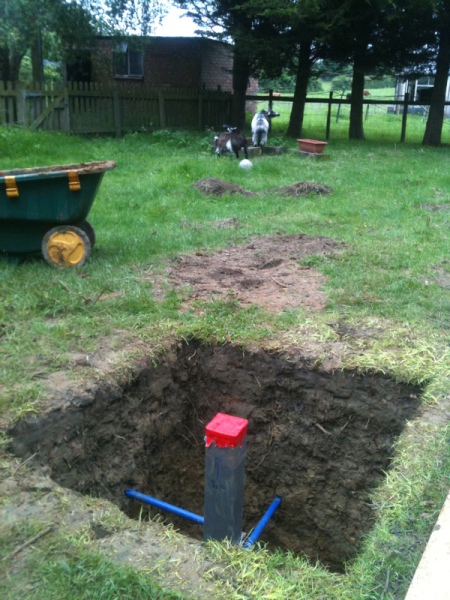

1m x 1m x 1m cube of concrete

1.7m above ground post (geared tilt)

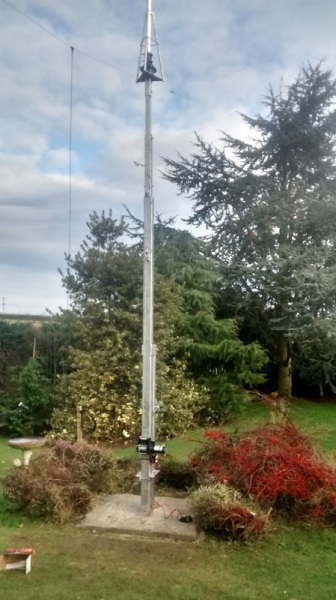

750mm rotator cage and G050 support bearing

2m 10swg 2" stub mast

Guy ropes and steel pegs

Ground post 80mm x 80mm x 3M (2M above ground)

Outer mast section 80mm x 80mm x 6m for 12m version (5m for 10M version)

Inner mast section 60mmx 60mm x 6m for 12m version (5M for 10M version)

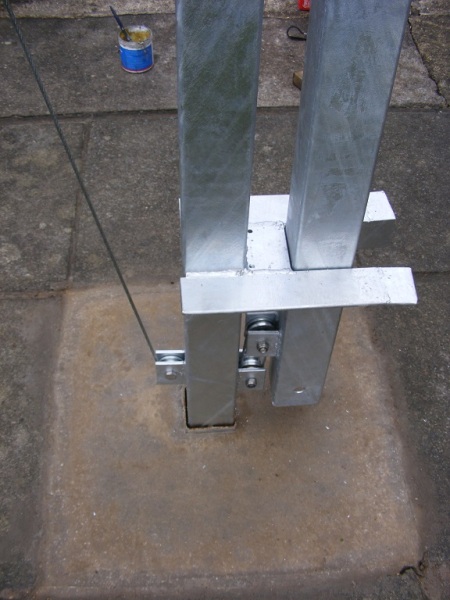

Supplied with 90mm x 90mm x 1M ground sleeve for ease of fitting an removal.

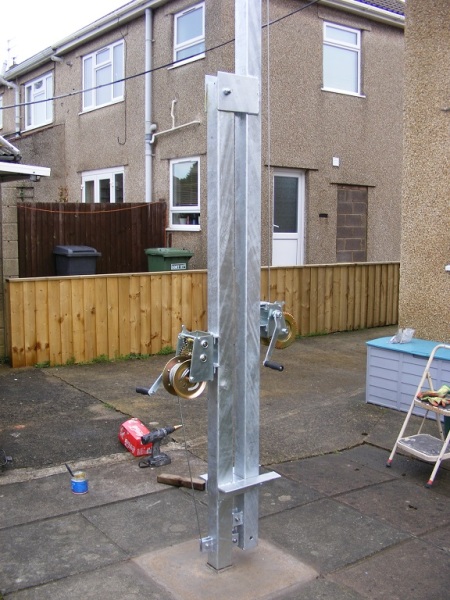

2 x winches, one for tilt (2500lb rating) and the other for elevation (1600lb rating)

Now fully hot dipped galvanised to ISO1461

hot dip galvanised

12" 18" 24" 36" stand off sizes for wall bracketry

Outer mast section 80 x 80mm x 6m for 12m version (5m for 10m mast)

Inner mast section 60mm x 60mm x 6m for 12m version (5m for 10m mast)

2500lb rated winch for tilt operation and 1600lb rated winch for elevation.

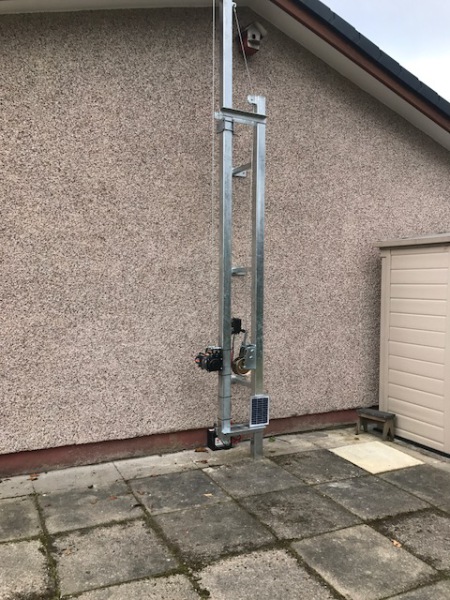

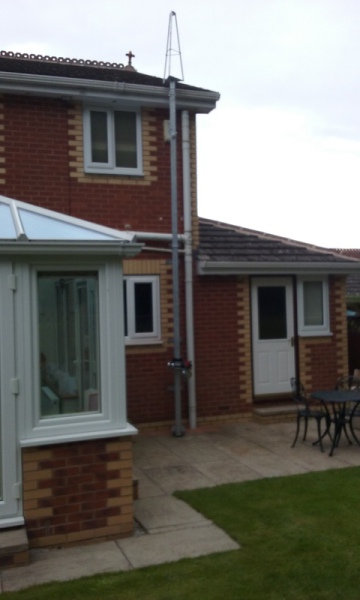

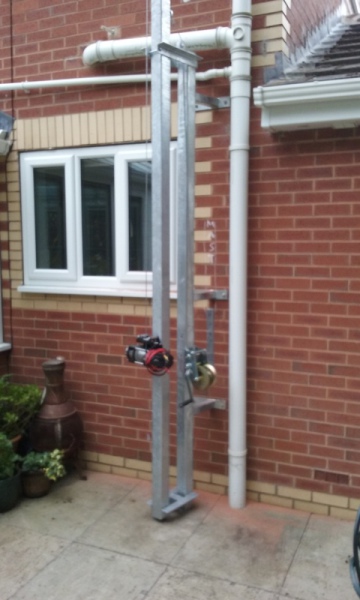

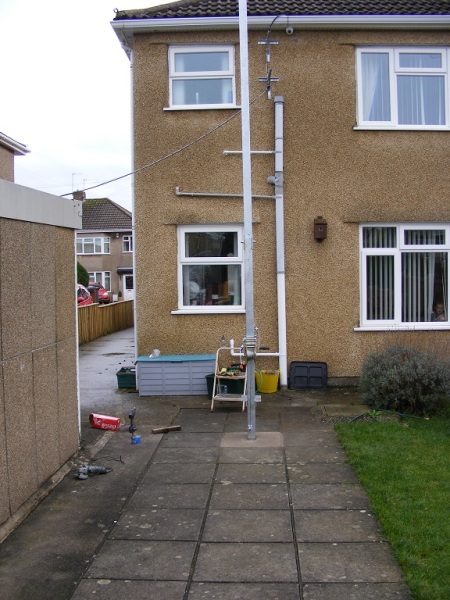

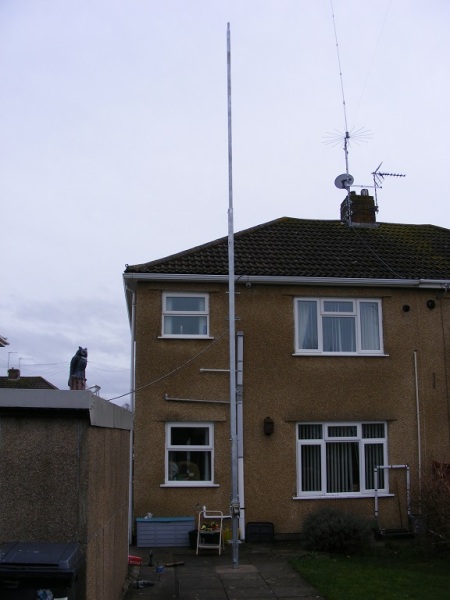

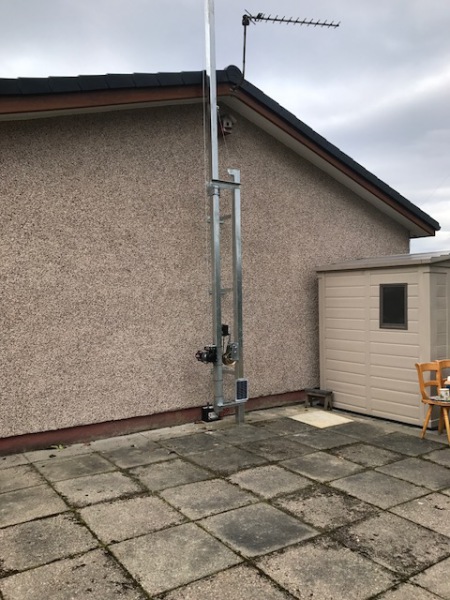

We now have a single wall bracket which is 3m tall for the 10m and 3.5m for the 12M version. The bracket rests on the ground and is made from the same 80mm box section, this spreads the weight evenly over the full length and because it rests on the ground it's far less stress on the brickwork.

There's a security locking pin to keep the mast vertical, this is out of reach for children and can be accessed with a set of steps should you need to lower the mast.

12" 18" 24" 36" stand off sizes for wall bracketry

Outer mast section 80 x 80mm x 6m for 12m version (5m for 10m mast)

Inner mast section 60mm x 60mm x 6m for 12m version (5m for 10m mast)

2500lb rated winch for tilt operation and 1600lb rated winch for elevation.

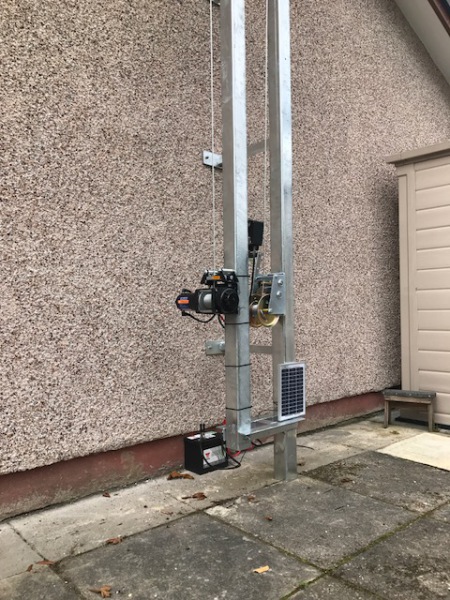

Electric winch can be added for raising the mast and tilting, add to cart below

We now have a single wall bracket which is 3m tall for the 10m and 3.5m for the 12M version. The bracket rests on the ground and is made from the same 80mm box section, this spreads the weight evenly over the full length and because it rests on the ground it's far less stress on the brickwork.

There's a security locking pin to keep the mast vertical, this is out of reach for children and can be accessed with a set of steps should you need to lower the mast.

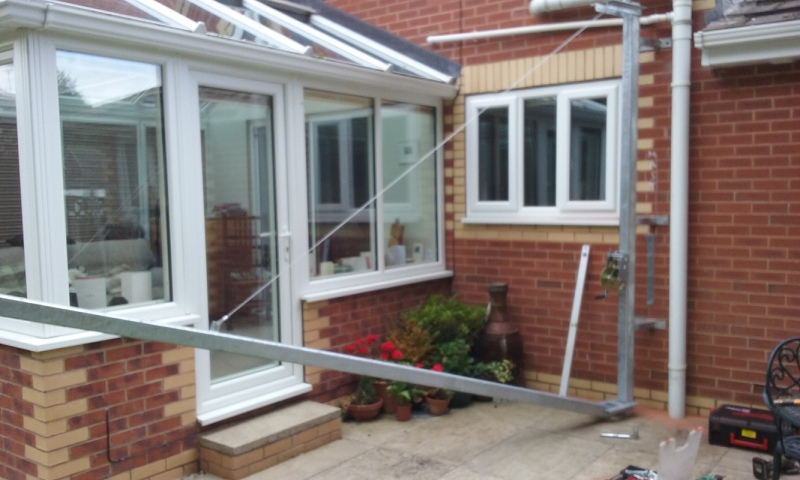

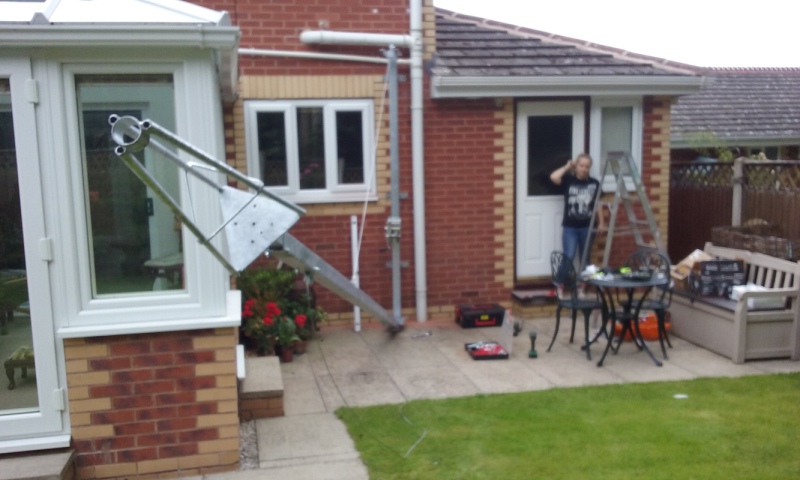

The orientation of the tilt is as you look at the wall (facing the wall if you want the mast to tilt left then it L/H tilt)

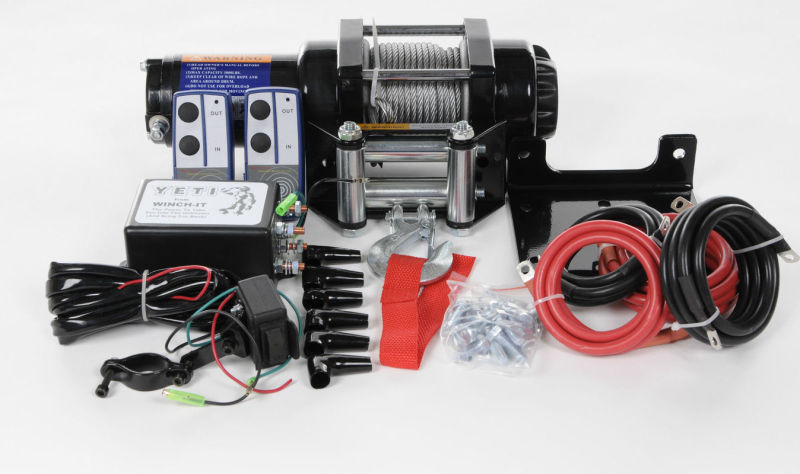

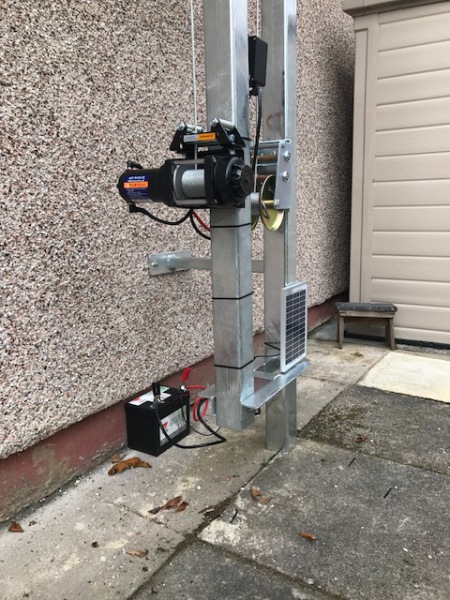

These are 12V wirelessly operated electric winches.

They are mechanically braked and ideal for the puspose of elevating or tilting your mast.

With around 200m wireless distance you can lower and raise the mast from indoors.

Click the drop down box for various sizes

2500lb for aluminium or 10m steel, 10 and 12m steel 3000lb, 12m steel 3 section and lattices 3500lb. We can also supply larger electric winches POA
