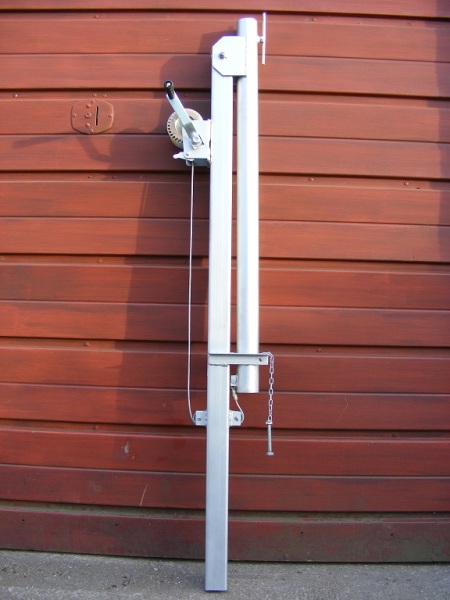

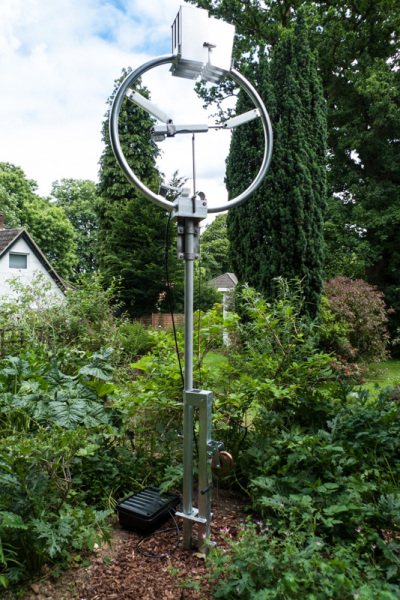

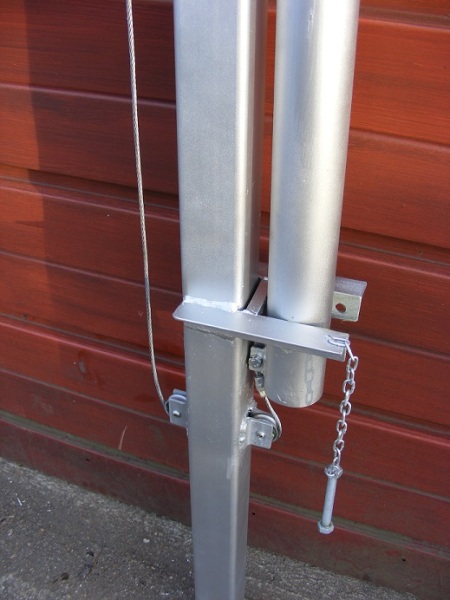

This is a very robust tilt mechanism that does away with the need for a rotator and possibly planning consent.

Fitted and removed in minutes and comes complete with a 500mm ground sleeve, removable 1.5M post, rotator handle and clamp for you to maunally set your beam.

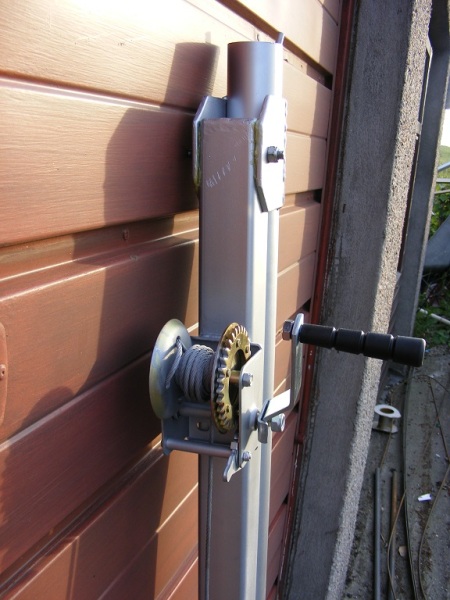

Insert your own 2" (50mm) pole into the sleeve, tighten the T-bar (no tools required) raise the mast with the winch provided. Once vertical the T-bar can be lossened and the mast rotated with the rotator handle supplied. Tighten the T-bar to secure your antenna in the chosen direction.

70MM x 70MM @ 500mm long ground sleeve.

60mm x 60mm @1.5M long ground post

800lb winch

60mm round tube (sleeve)  for inserting your mast.

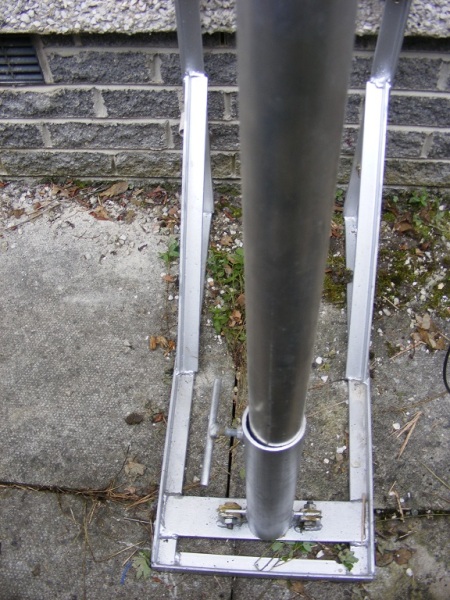

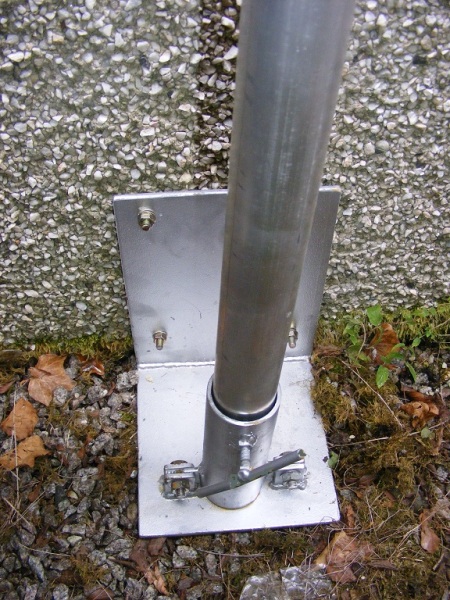

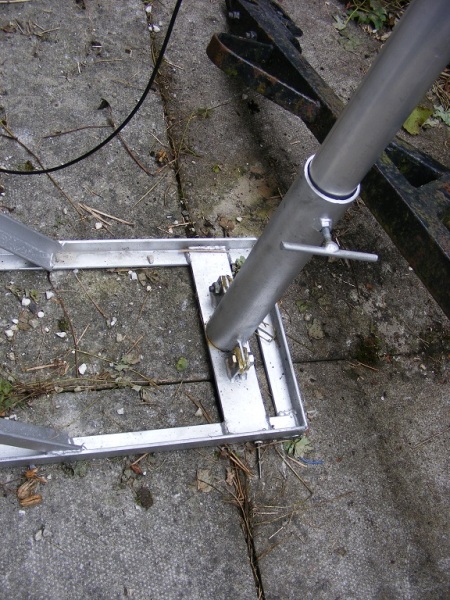

This item comes with a ground mounted tilt plate which attaches to your wall and a matched K bracket and  rotator handle to fit your 2" mast / pole..  Ideal for beam antennas.

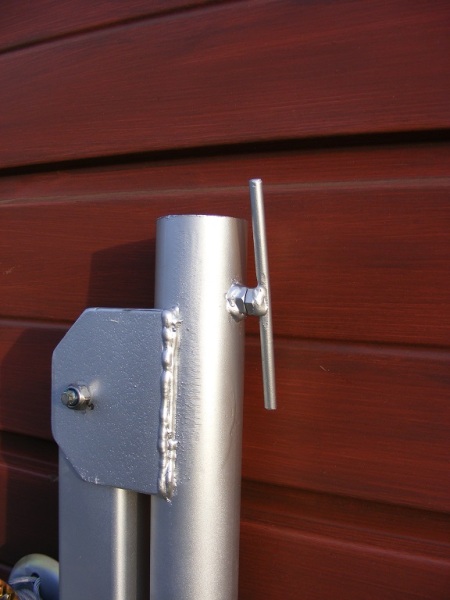

There's two collars and locking T bars for ease of rotating your antenna without the use of a costly rotator.

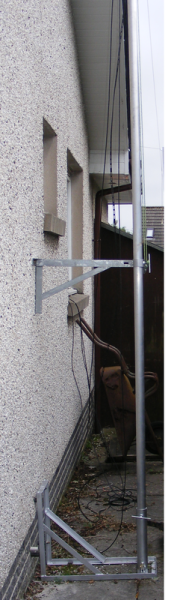

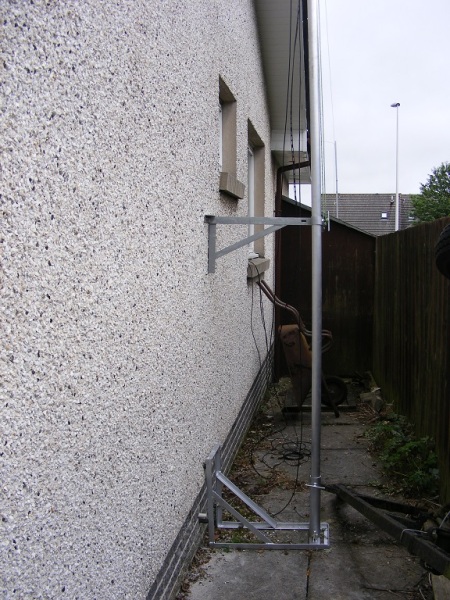

This particular model is a parrallel tilt which lowers in line with the fixing wall. Ideal for gable end fitment where space is limited.

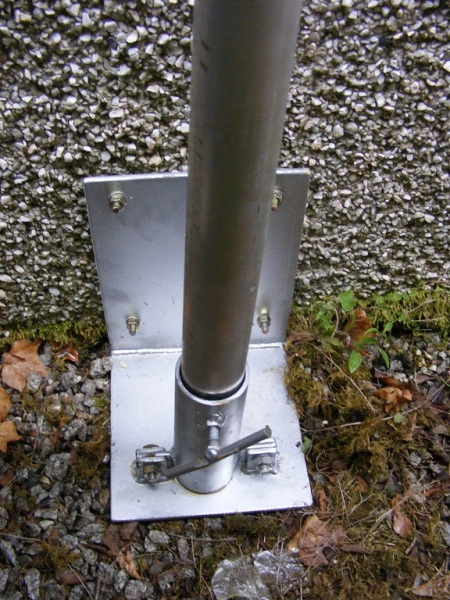

This item comes with a ground mounted tilt plate which attaches to your wall and a matched K bracket and  rotator handle to fit your 2" mast / pole..  Ideal for beam antennas.

There's two collars and locking T bars for ease of rotating your antenna without the use of a costly rotator.

This particular model is a parrallel tilt which lowers in line with the fixing wall. Ideal for gable end fitment where space is limited.

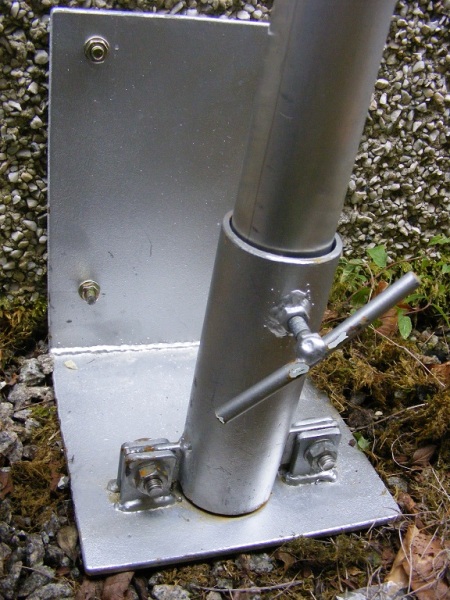

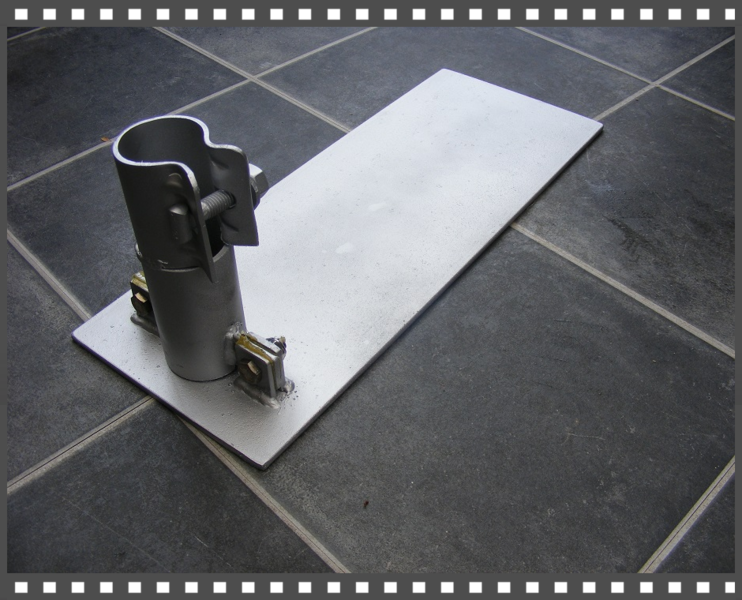

This is a very robust item with a single bolt clamp which won't damage your alloy mast.

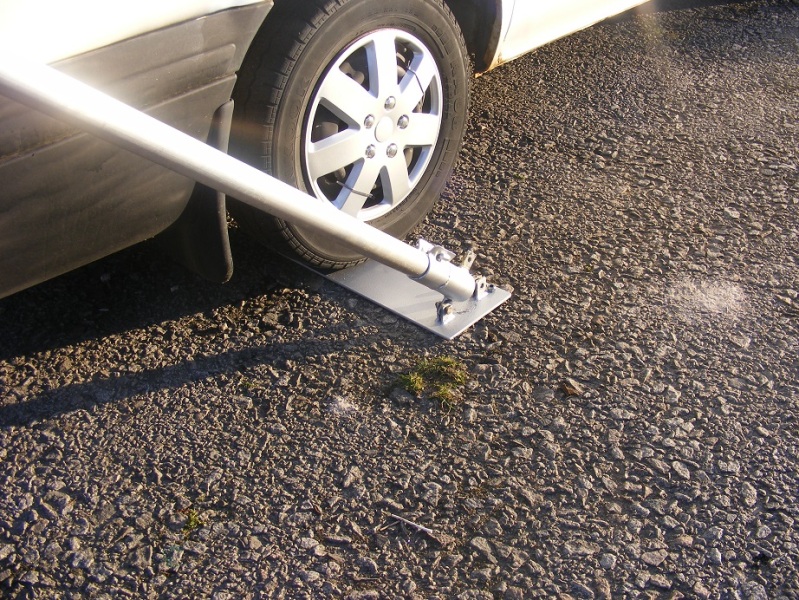

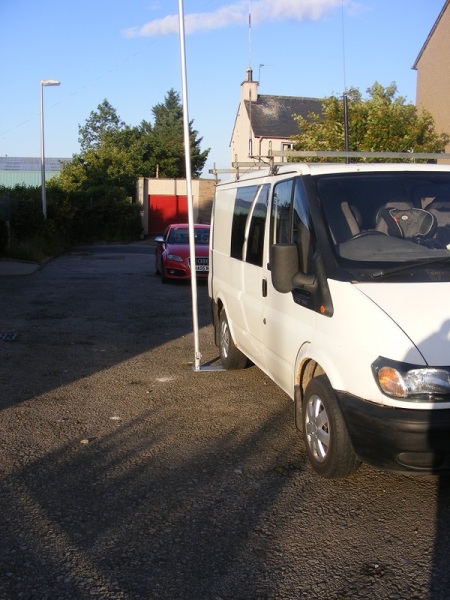

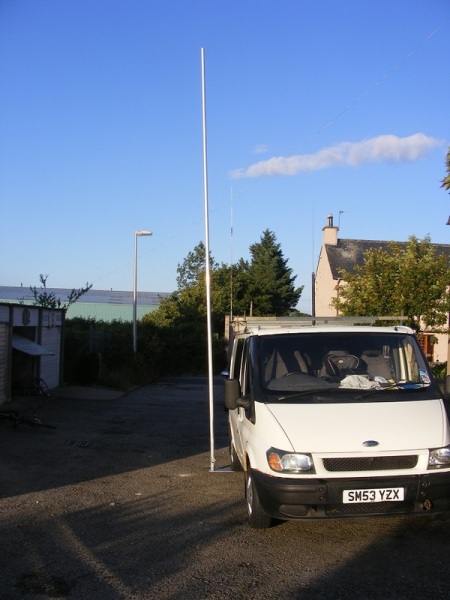

Solid 6mm drive on plate with no sharp edges to damage your tyres etc.

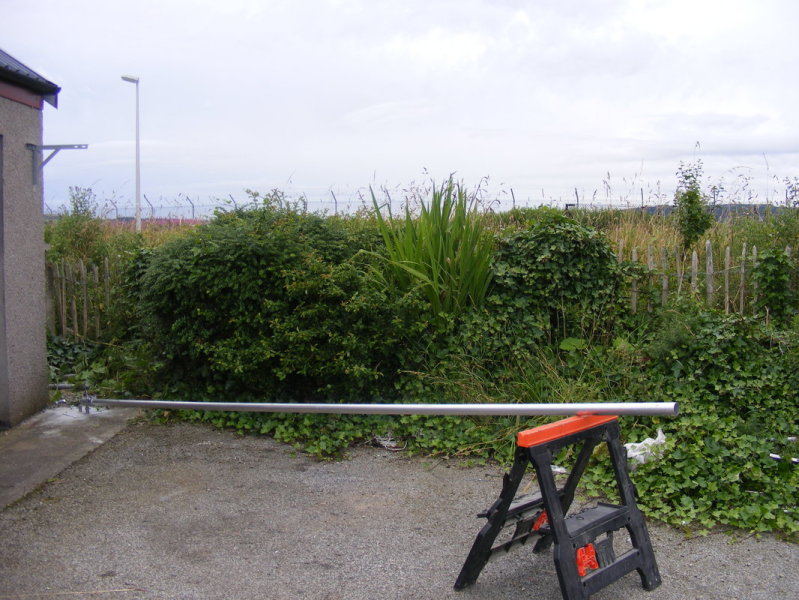

Remove one of the pivot bolts (17mm Stainless steel) to tilt your mast, making it easy to add, remove or tweak your antennas.

For use with 2" (50mm)

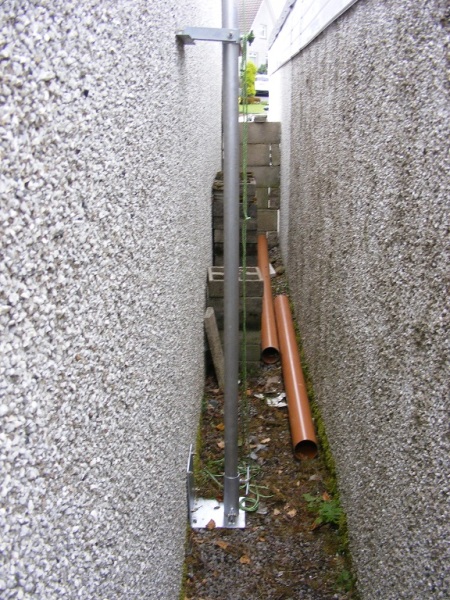

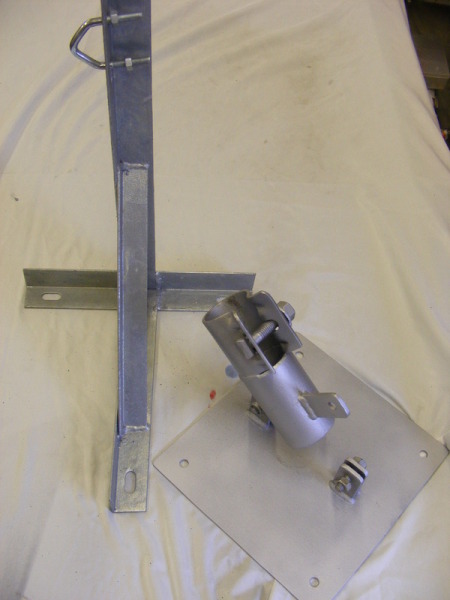

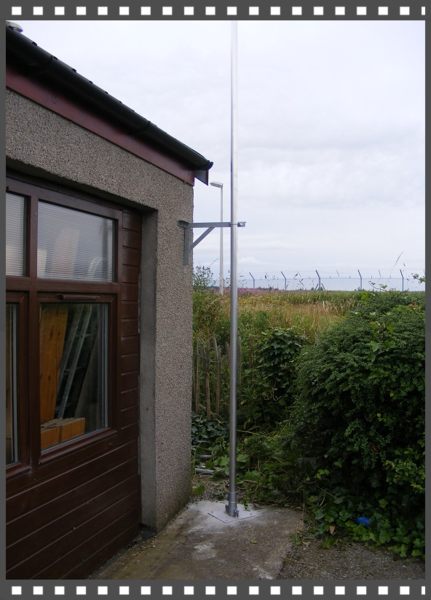

This clamps around your mast and fixes to the ground to allow you to tilt the mast, making it easy to lower and raise your antennas. There is a K style stand off bracket to secure your mast to the wall, giving you a solid base for your antennas.

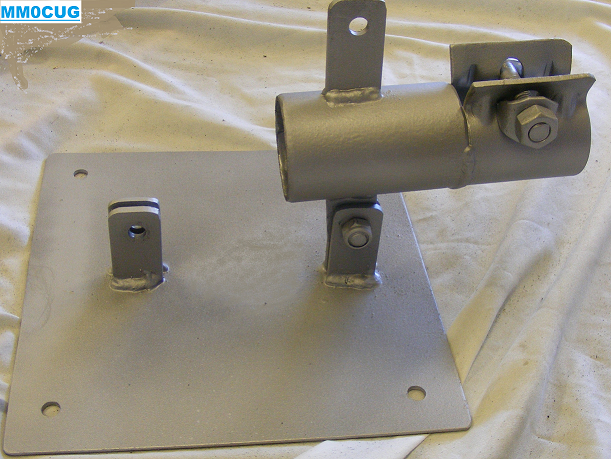

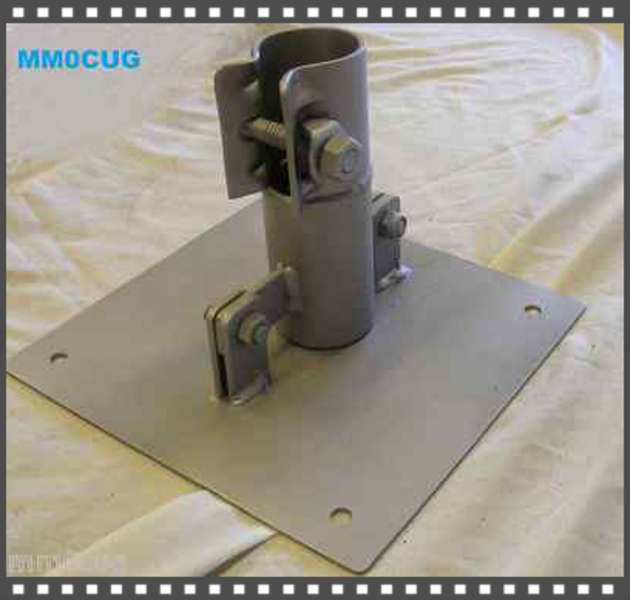

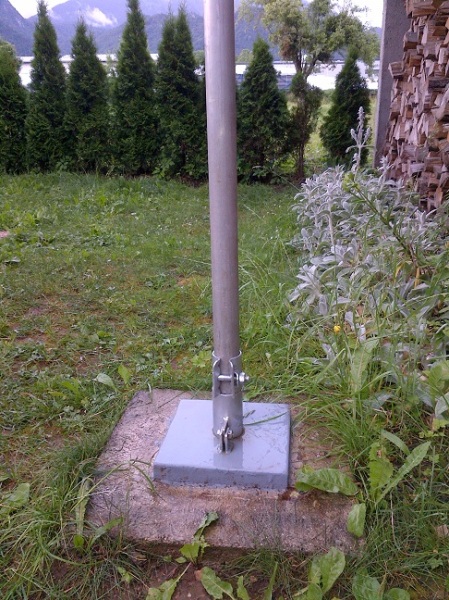

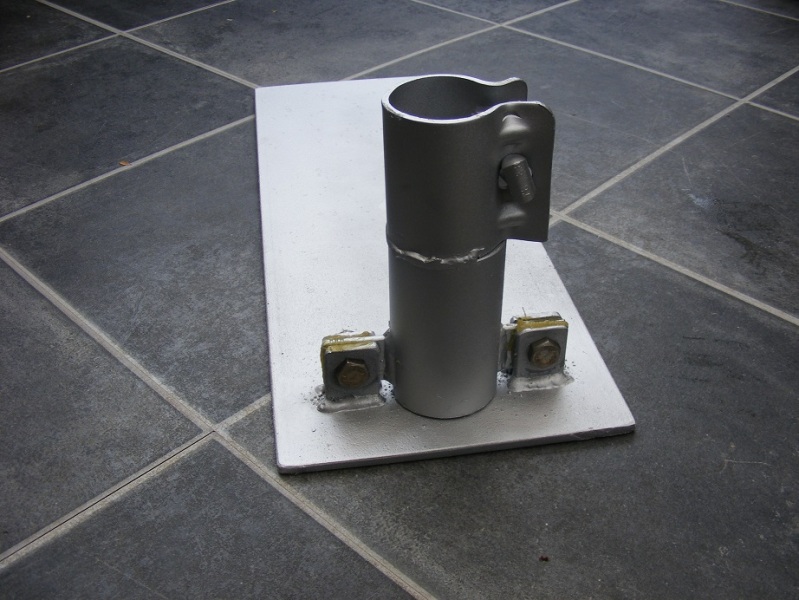

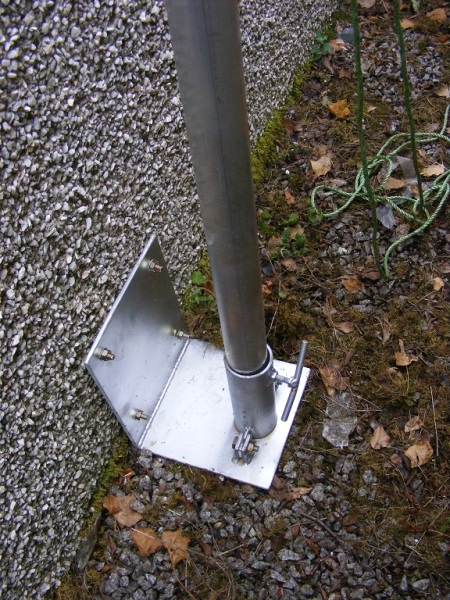

Heavy duty tilt plate for fitting your own 2" tube or vertical to the ground.

Four bolt holes allow you to attach it to the ground, insert your 2" tube and tighten the single nut to secure.

Removing one of the lug bolts allows you to tilt your mast or antenna while the base is still secured to the ground.

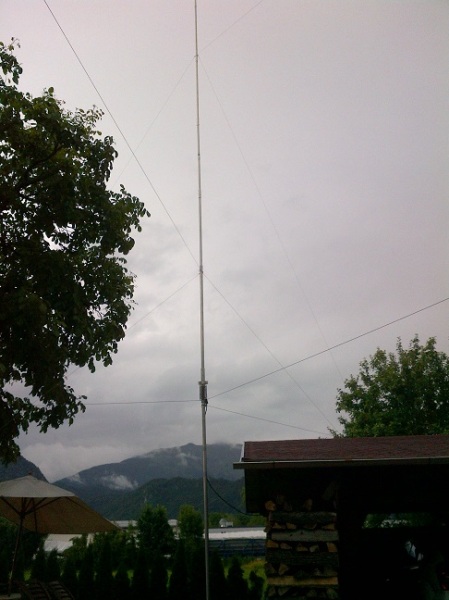

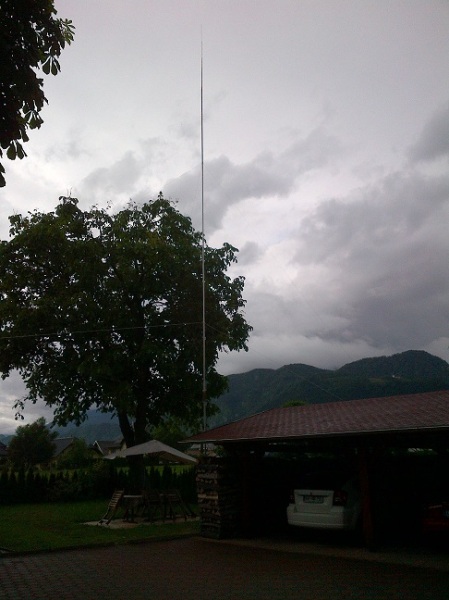

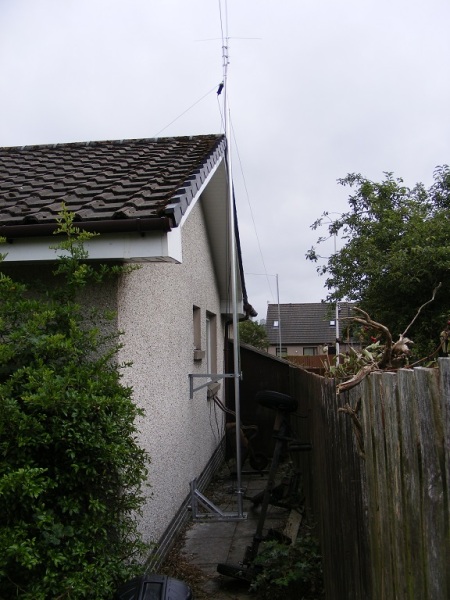

Photo shows a 60ft 1/4 wave vertical for 80M, obviously at that height it would require guyed as in the photo.
